Cathodic Protection Station with Switching Power Supply

[sinelgy]

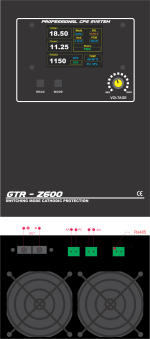

Cathodic Protection Station with Switching Power Supply for Buried Metal Structures

Benefits of the Switchmode Cathodic Protection Rectifier:

• Can be installed in any existing CP (Cathodic Protection) cabinet.
• Optional integrated remote monitoring (data transmission).
• Increased output efficiency, over 90% compared to conventional transformers.
• Improved efficiency means less heat and greater thermodynamic stability, especially in hot environments.
• Smaller and lighter in size than the conventional transformer rectifier counterpart, resulting in lower transportation and maintenance costs.
• High-quality DC output significantly enhances cathodic protection performance.
• Reduced carbon footprint.
• Lower AC current consumption.
• Less copper usage to reduce costs, weight, and theft.

Characteristics

Power Supply Voltage - 230 VAC, 50Hz Dimensions - 220152105mm (LWH) Weight - 3.1 kg Ventilation - Forced with fans Consumed Current - 3A Switching Frequency - 40KHz Nominal Output Voltage - 0 - 30V, stabilized Nominal Output Current - 0 - 20A, continuous Humidity - 85% without condensation Ambient Temperature - 0°C to +35°C Efficiency - 94% Protection Class - IP20

• Controller
• Internal Protection - OVP/OCP/OTP
• Display - TFT color 320x240/2.8”
• Displayed Parameters - Current / Voltage / Potential / Operating Temperature / RAS / POW/PU
• Status Display - PWG/OVP/OCP/OTP Control - Manual (via potentiometer) / Automatic (PID) / Dispatcher
• Operating Modes Display - MAN/AUTO/DSP/SAFE Communication Port - RS485 protocol - Industrial Modbus

• STATUS

PWG - Normal Operation
OVP - Overvoltage Protection
OCP - Overcurrent Protection
OTP - Overtemperature Protection
RAS - Sacrificial Anode Electrical Resistance
POW - Output Power (watts)
MAN - Manual Control
AUTO - Automatic Control (PID)
DSP - Dispatcher Control
SAFE - Safe Mode Operation
